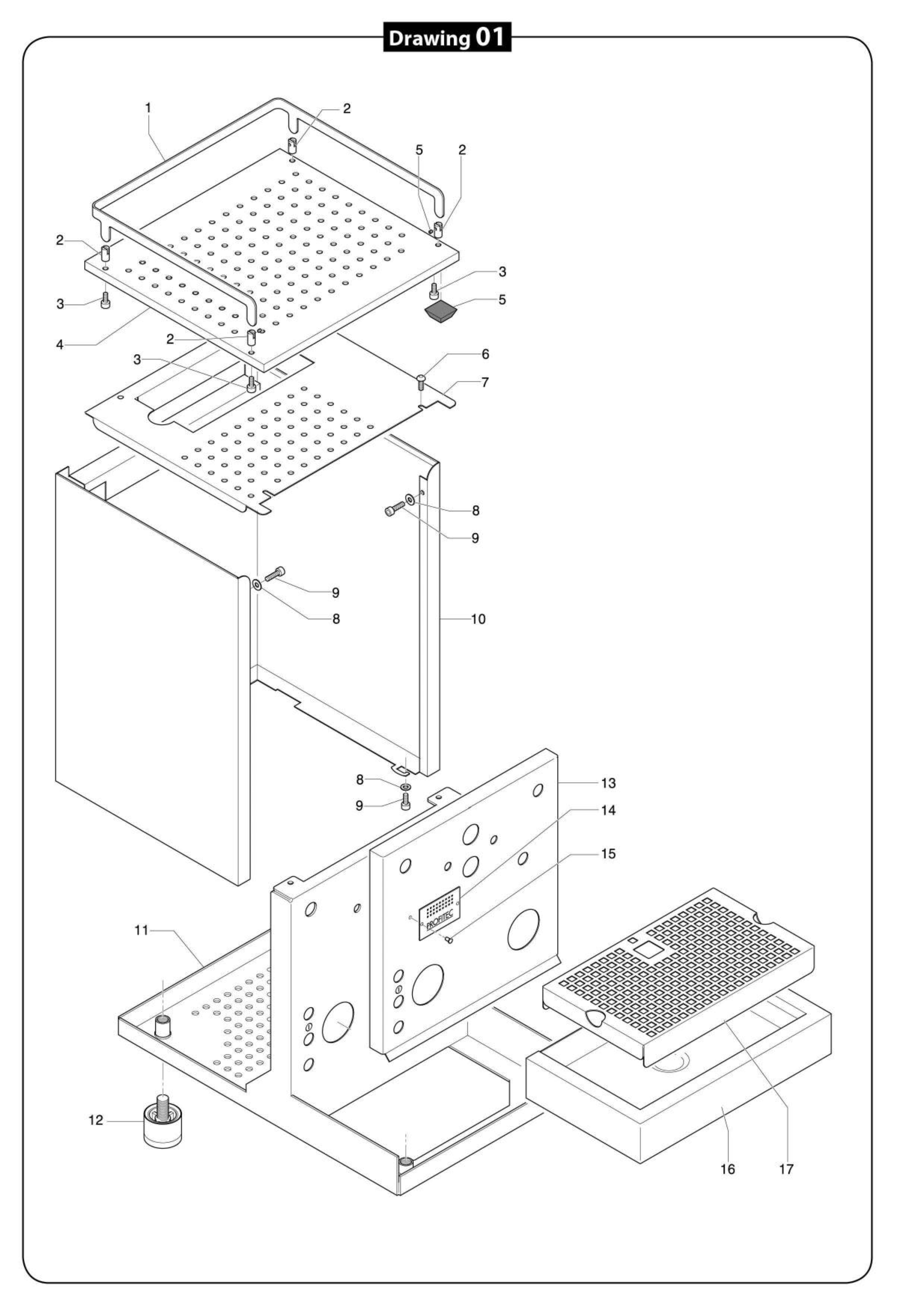

Pro 500 Exploded View - Chassis







Position

Part number

Description

1

P2106

Railing Pro 500

2

P8104

Post for reling

3

P6107

Headless screw M3x4

4

P2104

Upper cup warming tray

5

B7474212

Adhesive foot for cup warming tray

6

P2022

Lens screw M4x10

7

P2103

Lower cup warming tray

8

P2009

Washer 0 4

9

P2006

Screw cylinder M4x10

10

P2107

Body stainless steel polished

11

P2100

Chassis

12

P7025

Foot inox H30 -M10

13

P2101

Front panel

14

P2063

Label Profitec

15

P1998

Blind rivet truss head 2,4x12

16

M3022.4

Drip tray

17

P2102

Grid trp tray
