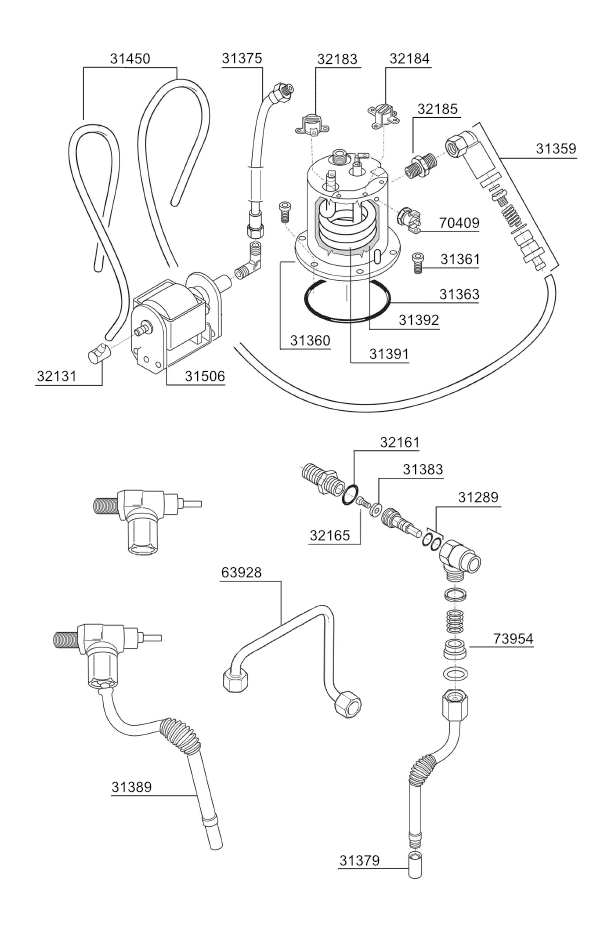

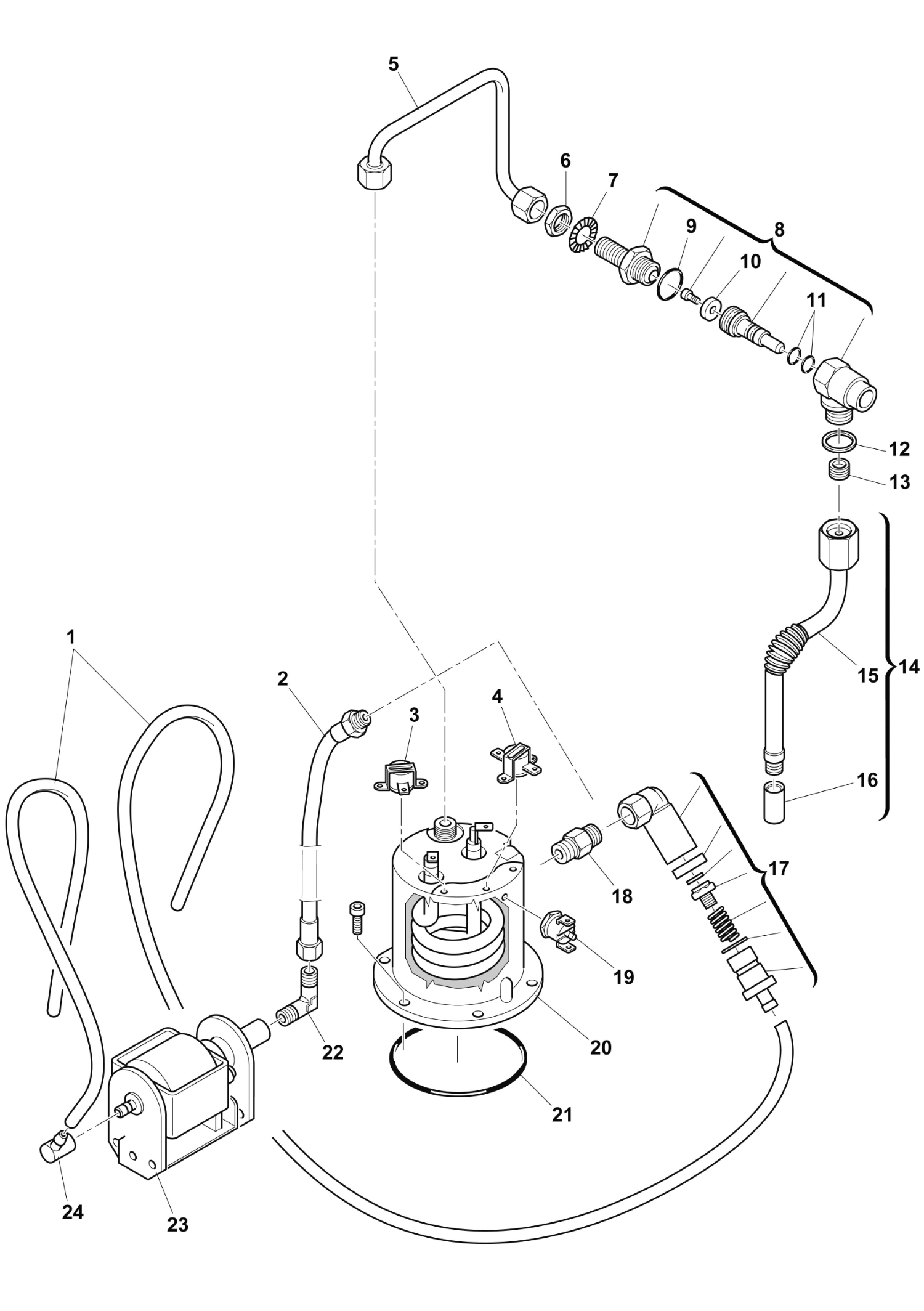

Silvia V3 Exploded View - Steam Arm, Pump, Boiler (Copper element)

1 38228002 Silicone hose D. 9 x 6mmL = 560 mm
2 69000702 FLEX PIPE INOX LONGE MM.190 1/8F 1/8M
3 34200296 thermostat 100 Silvia
4 34200295 thermostat 140 Silvia
5 10042109 PIPE BOILER-STEAM COCK SILVIA
6 23217005 LOW NUT 1/4" GAS
7 37431400 WASHER DIAM.14
8 10060119 steam tap Silvia
  10705169 STEAM COCK COMPLETE SILVIA 08
9 27350001 GASKET 3/8 SP. 1 Gas
10 36302002 Gasket Past Valve
11 36402001 Gasket O-Ring 6.07 X 1.78 EPDM 105
12 36220009 Gasket Nut Note Teflon
13 36930016 Gasket
  39110038 Spring
14 10049063 STEAM PIPE SILVIA
15 36990004 Rubber for Steam PIPES
16 23000115 STEAM SPRAYER SILVIA
17 10060406 EXPANSION VALVE MISS
18 23000052 STEAM JUNCTION BOILER-EXPENC. VALVE MISS
19 34200058 THERMOSTAT 165ï TY 60R
20 20102945 BOILER MISS+H ELEMENT V110
  20102946 BOILER MISS+HEATING ELEM.230V
21 36405001 Gasket Ring 146 177 Silicone
22 69200070 FITTING 1/8M 1/8M
23 34011023 PUMP EP5 120V NEW
  34011026 PUMP EP5 230V
24 38121034 PIPE PUMPS EP5
25 37060513 SCREW M5 X 12
