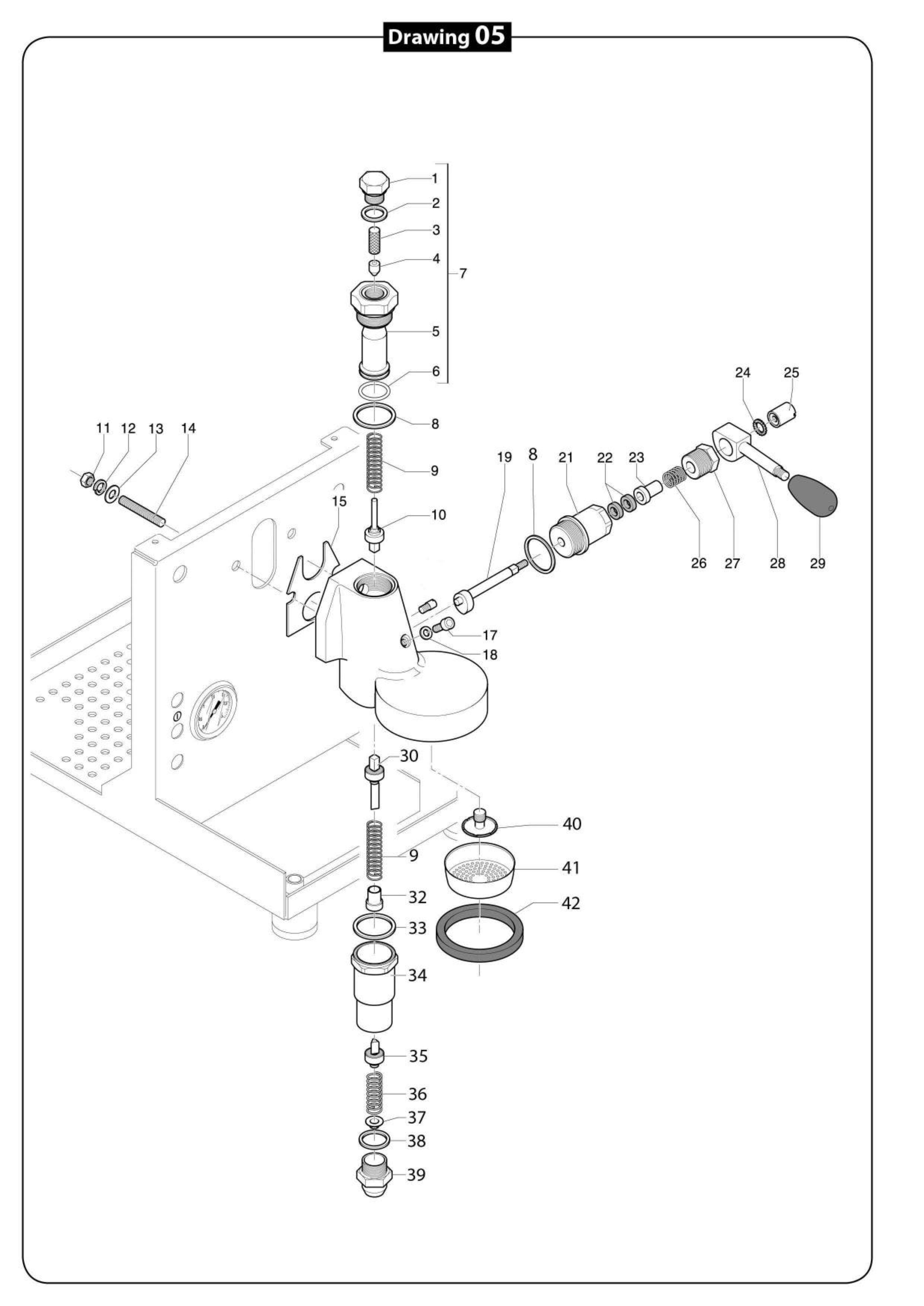

Pro 500 Exploded View - Brew Group

Position

Part number

Description

1

R000002141

Upper fitting group cylinder

2

C469900420

Gasket plug flow restrictor

3

C619900554

Inox filter 0,8

4

C229900549

Flow restrictor 0,8

5

C229901133

Upper sleave assembly

6

C469900422

Gasket socket brew group

7

C229901133.K

Socket brew group complete

8

C469900421

Gasket axis 35x30x2

9

C219900423

Spring

10

C219900424

Valve group E61 upper

11

C309900127

Hex nut M8 V2

12

P2011

Washer open 0,8

13

P2010

Washer 0,8

14

C309900131

Allen screw M8x31 ASTM a193

15

C449900767

Housing gasket brew group

17

C309900164

Screw cylinder M6x10

18

C469901132

Teflon gasket 10x6x1

19

C219900425

Axis group E61

21

R000002142

Flange

22

C219900426

Washer axis assembly E61

23

R000002143

Connector

24

B7479947

Lock washer

25

R000002146

Bolt lever

26

C219900427

Spring axis group

27

R000002144

Screw joint axis group

28

R000002145

Lever axis group upper w/bolt

29

C439900840

Lever knob

30

C219903081

Valve group E61 middle

31

B7479942

Spring guide group

32

C469900421

Gasket axis group

33

C229901165

Lower sleeve assembly

34

C219900430

Valve group E61 lower

36

C219900431

Spring lower

37

R000002148

Sprayer brew group lower

38

C469900783

Teflon gasket for valve

39

R000002149

Lower discharge group

40

C229901128

Sprayer brew group

41

C519900103

Shower screen for all ECM-models
