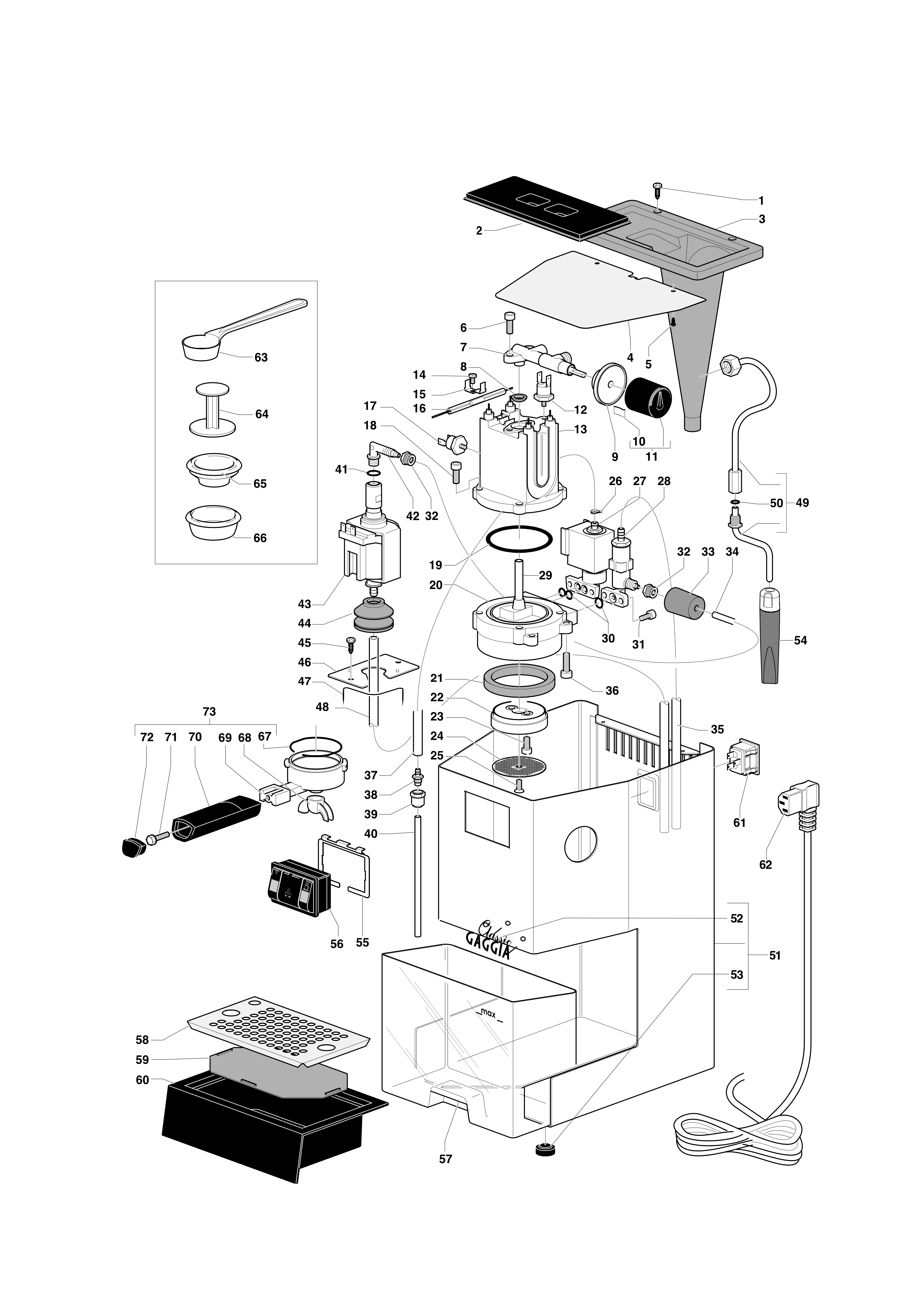

Classic Exploded View - Complete
|
Pos. |
Part N° |
Description of Parts (ENG) |
|
||
|
01 |
DI7981-3.5X9.5N |
SELF-T.SCREWS 3.5X9.5 NICKEL-PLATED |
|||
|
02 |
CF0113 |
LID |
|||
|
03 |
CF0115 |
FUNNEL |
|||
|
04 |
CF0108/01 |
TOP COVER W/O HOLES |
|||
|
05 |
DI7981P2.9X6.5I |
STAIN STEEL 2,9X6,5THREAD SCRE |
|||
|
06 |
UN5931-6X16Z |
6X16 GALV. SCREW |
|||
|
07 |
EF0045/01/A |
VALVE ASSEMBLY |
|||
|
08 |
DM0041/081 |
OR 112 EPDM GASKET |
|||
|
09 |
CC5005/01 |
PROTECTION |
|||
|
10 |
DM0814 |
SPRING FOR KNOB |
|||
|
11 |
CF0189/A |
STEAM KNOB ASSEMBLY |
|||
|
12 |
DM1288 |
STEAM TEMPERATURE SWITCH |
|||
|
13 |
EF0030/A |
BOILER ASSEMBLY 120/220/240 V0 |
|||
|
14 |
DM1957 |
SCREW M 4X5 GALV.W/KNURLED HEAD |
|||
|
15 |
GG0064 |
BRACKET FOR THERMOFUSE |
|||
|
16 |
DM1040 |
FUSE |
|||
|
17 |
DM1168 |
COFFEE TEMPERATURE SWITCH |
|||
|
18 |
UN5931-6X16Z |
6X16 GALV. SCREW |
|||
|
19 |
DM0041/082 |
GASKET OR 167 EPDM 70°SH |
|||
|
20 |
B0171 |
GROUP BODY |
|||
|
21 |
NG01/001 |
FILTER HOLDER GASKET |
|||
|
22 |
DY0036/A |
SHOWER HOLDING PLATE |
|||
|
23 |
UN5931-6X12I |
6X12 S.S. SCREW |
|||
|
24 |
DM0704 |
SHOWER |
|||
|
25 |
DI7987-5X8I |
SCREW TSP M5X8 UNI 7688 DIN 965 INOX |
|||
|
26 |
DM2069 |
TUBE CLAMP HBV 96 |
|||
|
27 |
DM1645/001 |
ELECTROVALVE 220-230/50 VI |
|||
|
27 |
DM1645/002 |
SOLENOID VALVE V 120 60 CPS |
|||
|
28 |
B0147/A |
VALVE ASSEMBLY |
|||
|
29 |
B0181 |
COPPER PIPE |
|||
|
30 |
WGADM0041/022 |
GASKET OR 2025 |
|||
|
31 |
UN5931-5X12Z |
5X12 GALV. SCREW |
|||
|
32 |
WGAB0053 |
NUT |
|||
|
33 |
B0196 |
SAFETY RUBBER DEVICE |
|||
|
34 |
CF0102 |
P.T.F.E. TUBING 4X6X230 |
|||
|
35 |
WGAB0157/01 |
SILICONE TUBE 5X9 L=360 MM |
|||
|
36 |
UN5931-5X12I |
5X12 S.S. SCREW |
|||
|
37 |
CC5015/01 |
BLACK DISCHARGE SL-NE TUBE 5X9X180 |
|||
|
38 |
CF0159 |
OUTLET FITTING - RUBBER |
|||
|
39 |
CF0160 |
NUT FOR OUTLET FITTING |
|||
|
40 |
CF0149 |
OUTLET TUBING |
|||
|
41 |
DM0041/088 |
O-RING GASKET 2025 EPDM |
|||
|
42 |
B0052 |
ELBOW FITTING 1/8 GAS |
|||
|
43 |
DM1594/230240 |
EP5 V 230/50 PUMP |
|||
|
43 |
DM1792/120 |
PUMP V 120/60 |
|||
|
44 |
GG0085/01 |
EATON PUMP SUPPORT |
|||
|
45 |
DI7981-3.5X13Z |
SELF TAPPING GALV.SCREW 3,5X13 |
|||
|
46 |
CF0218 |
METAL PUMP-SUPPORT |
|||
|
47 |
GG0073 |
SPRING FOR FIXING PUMP |
|||
|
48 |
CF0174/02 |
SL-TRBF TUBE 5X9X380 ASPI. |
|||
|
49 |
CF0331/A |
STEAM PIPE SET FOR FROTHER |
|||
|
50 |
DM0041/088 |
O-RING GASKET 2025 EPDM |
|||
|
51 |
CC5070/A/IL |
CLASSIC BODY W. POLISHED ST. STEEL |
|||
|
51 |
CC5070/A/IS |
CLASSIC BODY W. SATIN-FINISH ST. ST |
|||
|
51 |
CC5071/A/IL |
CLASSIC UL BODY W. POLISHED ST. STE |
|||
|
51 |
CC5071/A/IS |
CLASSIC UL BODY W. SATIN-FINISH ST. |
|||
|
52 |
CC5074 |
CLASSIC METAL LOGO |
|||
|
53 |
CC5021 |
RUBBER FOOT |
|||
|
54 |
8301006000 |
FROTHER SET |
|||
|
55 |
CC5064 |
COVER FIXING BRACKET |
|||
|
56 |
DM1475 |
MAIN SWITCH-220-240 VOLTS |
|||
|
56 |
DM1475/001 |
MAIN SWITCH 110-120 VOLTS |
|||
|
57 |
CF0112 |
WATER TANK |
|||
|
58 |
CF0114 |
GRID |
|||
|
59 |
CC5028 |
GRID SUPPORT |
|||
|
60 |
CF0111 |
DRIP TRAY |
|||
|
61 |
WGADM1563 |
3 POLE SELF LOCKING PIN |
|||
|
61 |
DM1563/001 |
SELF FIXING PIN V 120 |
|||
|
62 |
CF0292/AUS |
AUSTRALIAN POWER CORD |
|||
|
62 |
CF0292/GBX |
ENGLISH POWER CORD |
|||
|
62 |
CF0292/ILX |
3 X 1 ISRAEL POWER CABLE |
|||
|
62 |
CF0292/CHX |
SWITZERLAND POWER CORD |
|||
|
62 |
CF0292/USA |
USA POWER CORD |
|||
|
62 |
CF0292/SCH |
SCHUKO POWER CORD |
|||
|
63 |
WGADM1017 |
MEASURE |
|||
|
64 |
WGA2PR/1 |
COFFE TAMPER |
|||
|
65 |
NF08/002 |
1-CUP FILTER 5.5/6.5 GR. |
|||
|
66 |
NF08/005 |
TWO CUPS FILTER 12/14 GRS. |
|||
|
67 |
18G1514 |
RETAINING - FILTER SPRING |
|||
|
68 |
WGA6301004010 |
2-WAY SPOUT CHROME |
|||
|
69 |
6301002000 |
FILTER HOLDER CUP |
|||
|
70 |
RE0002 |
FILTER HOLDER HAND GRIP |
|||
|
71 |
WGADM1319 |
6X16 GALVAN. SPECIAL SCREW |
|||
|
72 |
RE0015 |
PLUG FOR HAND GRIP |
|||
|
73 |
8301005010 |
FILTER BASKET SET (CHROME) |
|||
|
74 |
CC5062 |
230 V (9307-INOX) WIRING |
|||
|
74 |
CC5049/UL-CSA |
WIRING V 120 |
|||
|
75 |
CC5013/02 |
CLASSIC GAGGIA PACKING BOX |
|||
|
76 |
DM1075/080 |
INSTRUCTIONS MANUAL |
|||
|
77 |
CF0329 |
LOWER INTERNAL PACKING MAT. |
|||
|
78 |
CF0330 |
UPPER INTERNAL PACKING MAT. |
|||
