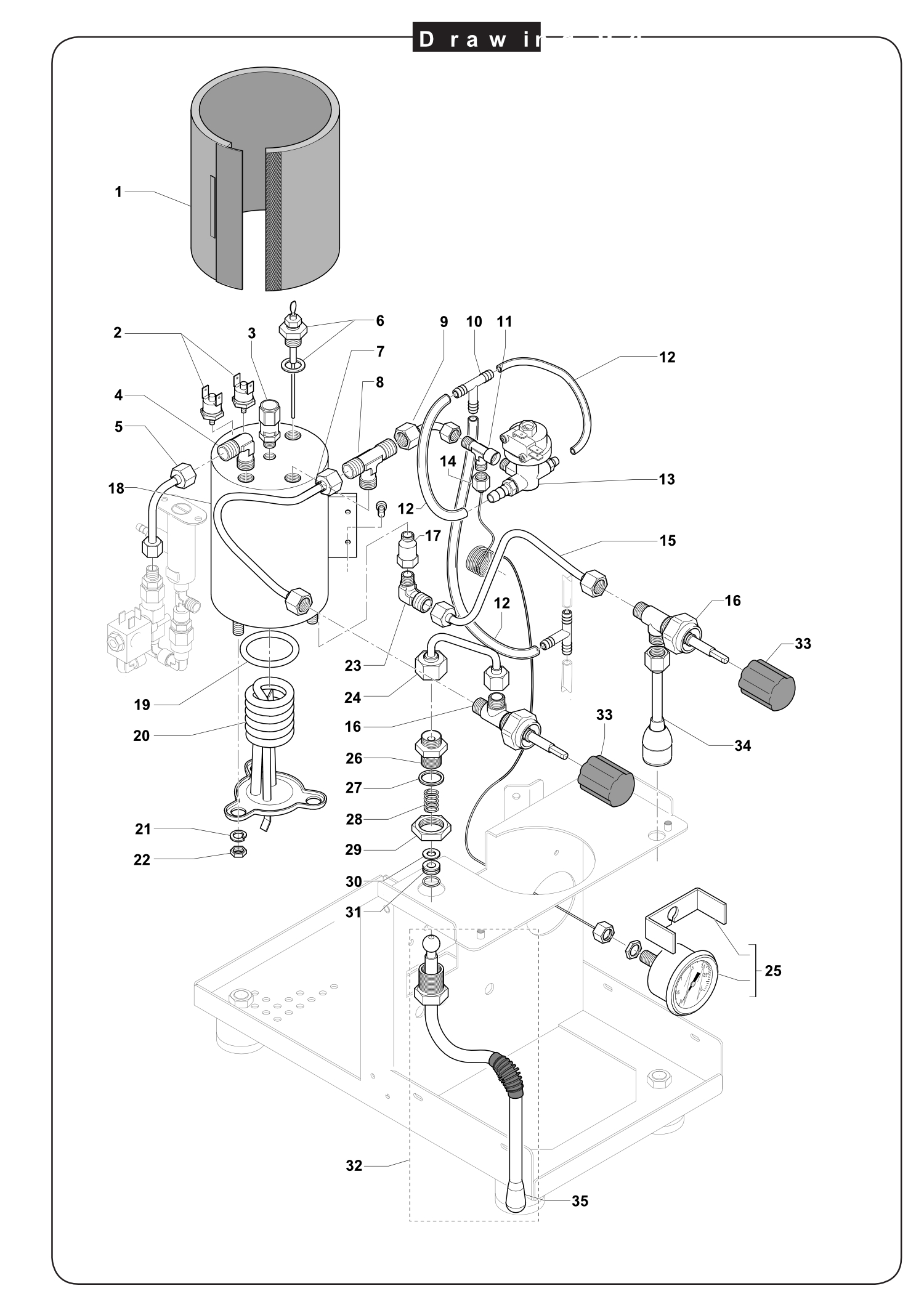

Pro 300 Exploded View - Steam Boiler, Valves, Gauge

Position

Part number

Description

1

P7051

Isolation steam-/hot water boiler

2

C199901550.1

Safety thermostat 145°C

3

P2509

Safety valve 1/4"

4

C229900525

L-connector 1/4"M 1/4"M

5

P1904

Steam-/hot water boiler loading tube

6

C199900839

Level probe l=80

7

P2511

Pipe steam extraction

8

P2519

T-connector 1/4" MMM

9

P3546

Connection pipe pressure switch

10

C400001932

Tee plastic

11

C229900644

T-connector 1/8" MMF

12

C499900769

Silicone hose 8x5

13

C199900294

Pressure switch

P6030

Anti-vacuum valve pressure switch

14

B7400902

Capillary tube boiler gauge

15

P2514

Pipe hot water extraction

16

P2550

Valve steam/valve hot water

17

P2047

Extension 1/8"M 1/8"F 22mm

18

P2508

Steam-/hot water boiler

19

P9013

Seal heating element steam-/hot water boiler

20

P9011

Heating element steam-/hot water boiler 230V 1200W

21

P2011

Spring ring 8,0

22

C309900127

Hexagon nut M8

23

P9015

L-connector 1/8"M 1/4"M

24

P2510

Connection pipe valve-steam wand

25

P2501

Boiler pressure gauge

26

P9115.5

Connection straight fitting

27

P6015

Gasket nut-valve

28

P9115.6

Spring steam valve

29

P9115.3

Hex nut

30

P6012

Washer socket

31

P6010

Ball socket teflon

32

P2553

Steam wand no-burn

33

P2551

Handle

34

P2552

Hot water wand

35

P2543

Steam nozzle 2 holes

35

P2542

Steam nozzle 4 holes
