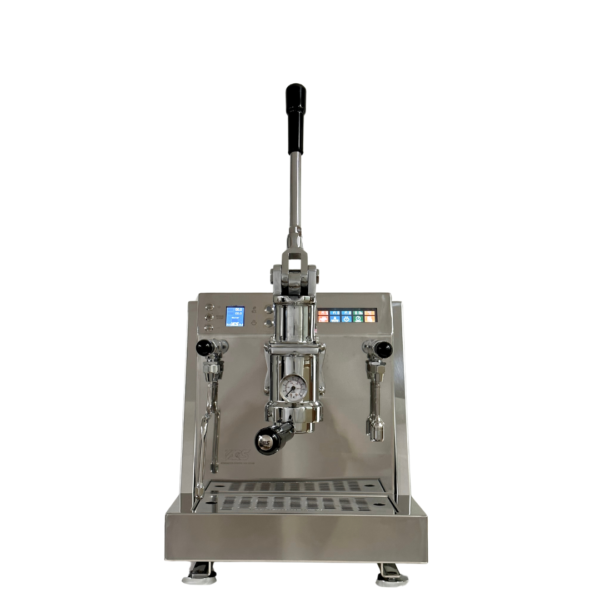

Vesuvius EVO Leva With Dosing Coffee System
Location Availability
Online (ships from Newcastle):Newcastle: In Stock
Brisbane:(p/up only) In Stock
Calculate Shipping
Free Shipping. Refer here for details.
Pickup from our showroom in Mayfield West, NSW. Refer here for details.
Pickup from our showroom in Milton, QLD. Refer here for details.
Pickup from our showroom in Moonah, TAS. Refer here for details.
Pickup from our showroom in Kiama, NSW. Refer <a href="/pick-up-in-store/">here</a> for details.
Pickup from our showroom in Frenchs Forest, NSW. Refer here for details.
The tradition of the lever combined with modern technology for unique performance.
The first lever machine with double boiler with independent temperature adjustments, coffee boiler and steam boiler,along with an integrated Timer system.
The innovative dispensing dosing system allows the infusion phase to be almost completely automated. Once the lever is lowered, pre-infusion begins after a variable time decided by the operator. The lever is released, moving on to the actual infusion phase and here the system comes into operation, preventing the barista from having to use the classic spoon to prevent the spent coffee arrives in the cup.
This system can work by time or more precisely by pressure, determining the exact quantity of coffee to be dispensed, leaving the operator free to carry out other tasks as happens with traditional machines automatic. L'evolution of lever machines has begun
Technical Features:
- Possibility to adjust the pre-infusion pressure from 1.5 to 5 bars from the touch display.
- Fast heating 12 minutes needed to make the first coffee.
- Manometer on the group to monitor the infusion pressure throughout the extraction process, intervening as desired to increase or decrease the pressure.
- Daily timer
- Touch display for real-time control of all machine parameters.
- Timer card for dispensing dosage.
- Access to the tank from the side panel.
- Double 316L stainless steel boiler of 0.8L and 2.3 L
- SM style group with double spring
- Silent rotary pump
- Professional steam power 200 ml in 15 seconds
- Frame and panels entirely in AISI 304
- 3 L tank + water mains connection
Temperature adjustments | Independent for group, coffee boiler and steam boiler. |
Pre-infusion pressure regulation | From 1.5 to 5 bars. |
Rapid heating | 12 minutes needed to make the first coffee. |
Pressure gauge on the unit to monitor the infusion pressure | Throughout the extraction period, intervening at will to increase or decrease the pressure. |
Timer | Daily |
Touch display | For real-time control of all machine parameters. |
Access to the tank | From the side panel. |
Boiler | Double stainless steel 316L 0.8L and 2.3 L |
Group | SM style with double spring |
Pump | Rotary |
Steam power | Professional 200 ml in 15 seconds |
Frame and panels | Entirely in AISI 304 |
Tank | 3 Liters + water connection. |
Voltage | 230/240 50Hz - 115/220 60Hz |
Consumption | 2400 Watt |
Height | 50 cm (76cm with lever) |
Width | 36.8 cm |
Depth | 50.8 cm |
Weight | kg. 48,5 |
Packaging height | 77 cm |
Packaging width | 50 cm |
Packaging depth | 60 cm. |
Included with the Vesuvius Evo Leva Timer.
- 1 Bottomless portafilter
- 1 Single portafilter
- 1 Double portafilter,
- 14G Filter
- Group lever
- Bag with various group spare parts
- ACS tamper
- Brush
- Microfiber cloth
- ACS Ring Doser
- ACS coffee mirror
- Flexible water connection
- PTFE tube for drip tray drainage.
Please note this machine does not have the Safety System Lever
Country of origin
Italy
SKU | 40149 |
Brand | ACS |
Shipping Weight | 50.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.700m |
Shipping Length | 0.600m |
Shipping Cubic | 0.210000000m3 |
Country of origin | Italy |
