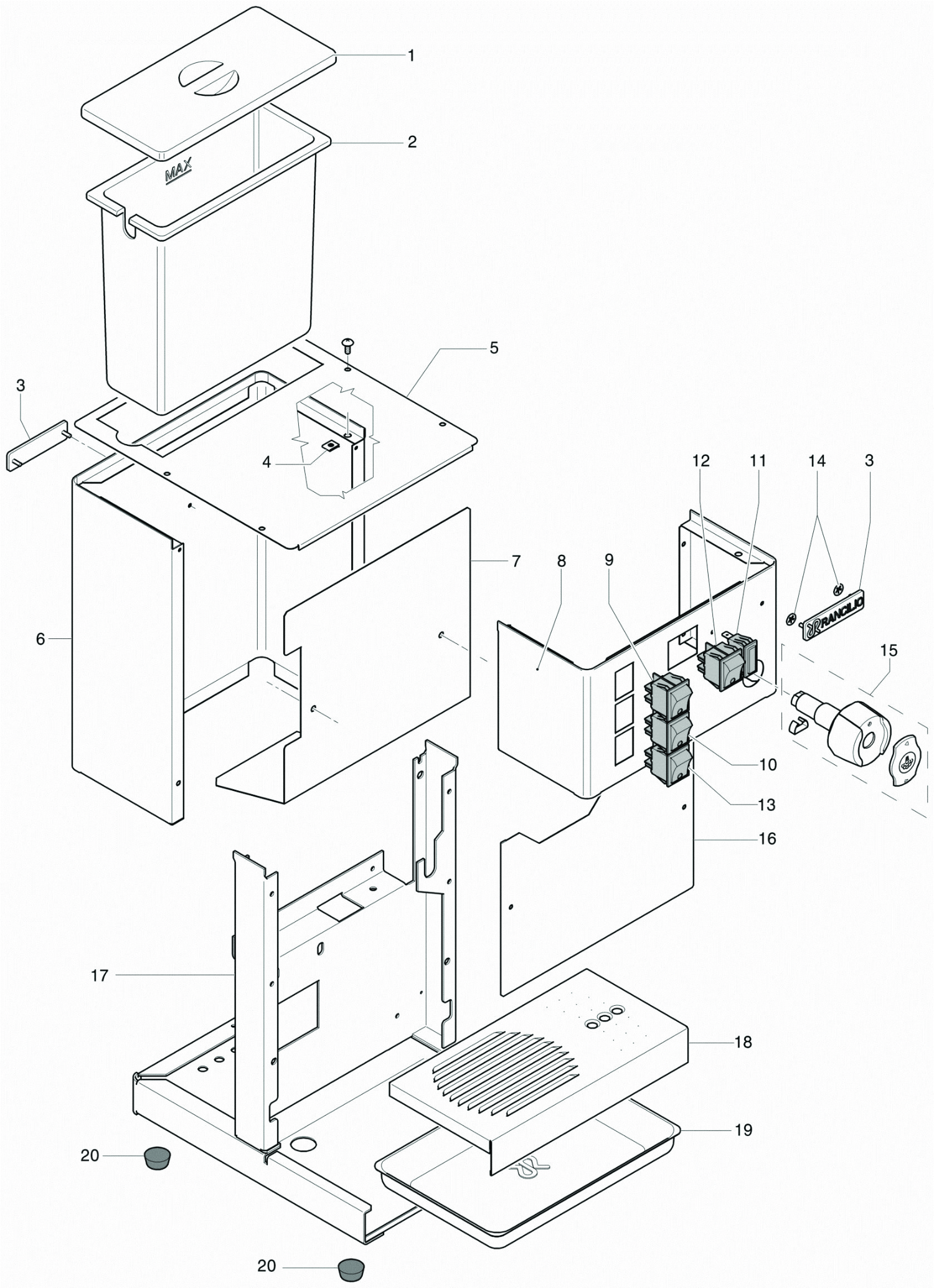

Silvia V3 Exploded View - Chassis



1 38123011 Cover
2 38123012 Water tank
3 42200121 Rancilio Plate MM 70
4 37900809 Plate U/8/11/9
5 32330363 SILVIA TOP
6 32330362 SILVIA BODY
7 32330367 SILVIA SHIELD
8 32330361 SILVIA FACE
9 34030047 TECNA COFFEE SWITCH
10 34030029 SWITCH WATER STYLE
11 34030060 INDICATOR 220V
12 34030037 ON-OFF SWITCH SILVIA /08
13 34030038 STEAM SWITCH FANTASY
14 37900505 ROUND FIXER D3 H106
15 10060186 WHOLE STEAM HAND WHEEL SILVIA /08
16 32330370 SILVIA/08 MOULDING
17 10880150 SILVIA FRAME
18 32330369 SILVIA LEAVE-CUP GRATE
19 32330365 SILVIA DRAIN TANK
20 36310008 NANCY Support black
