ECM Mechanika VI Slim
Location Availability
Online (ships from Sydney):Sydney: In Stock
Online (ships from Newcastle):
Newcastle: In Stock
Brisbane: In Stock
Hobart: No stock
Wollongong/Kiama: No stock
Calculate Shipping
Free Shipping. Refer here for details.
Pickup from our showroom in Milton, QLD. Refer here for details.
Pickup from our showroom in Mayfield West, NSW. Refer here for details.
Pickup from our showroom in Moonah, TAS. Refer here for details.
Pickup from our showroom in Frenchs Forest, NSW. Refer here for details.
Free Australian Metro Delivery

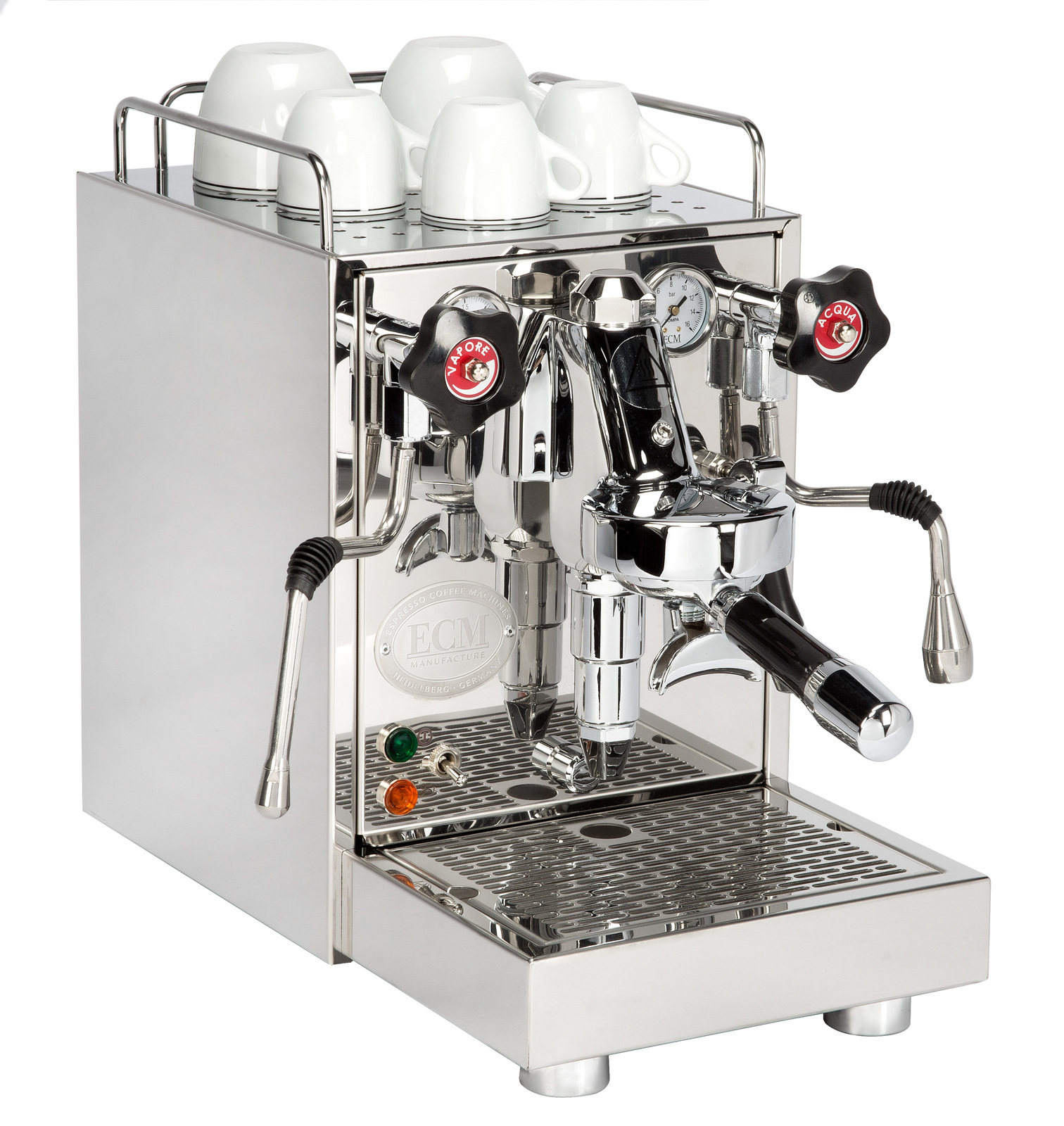

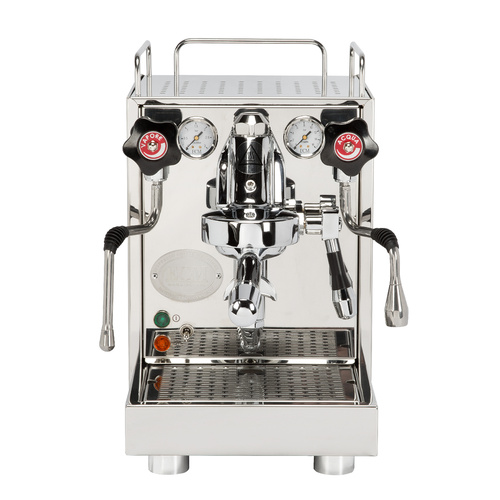

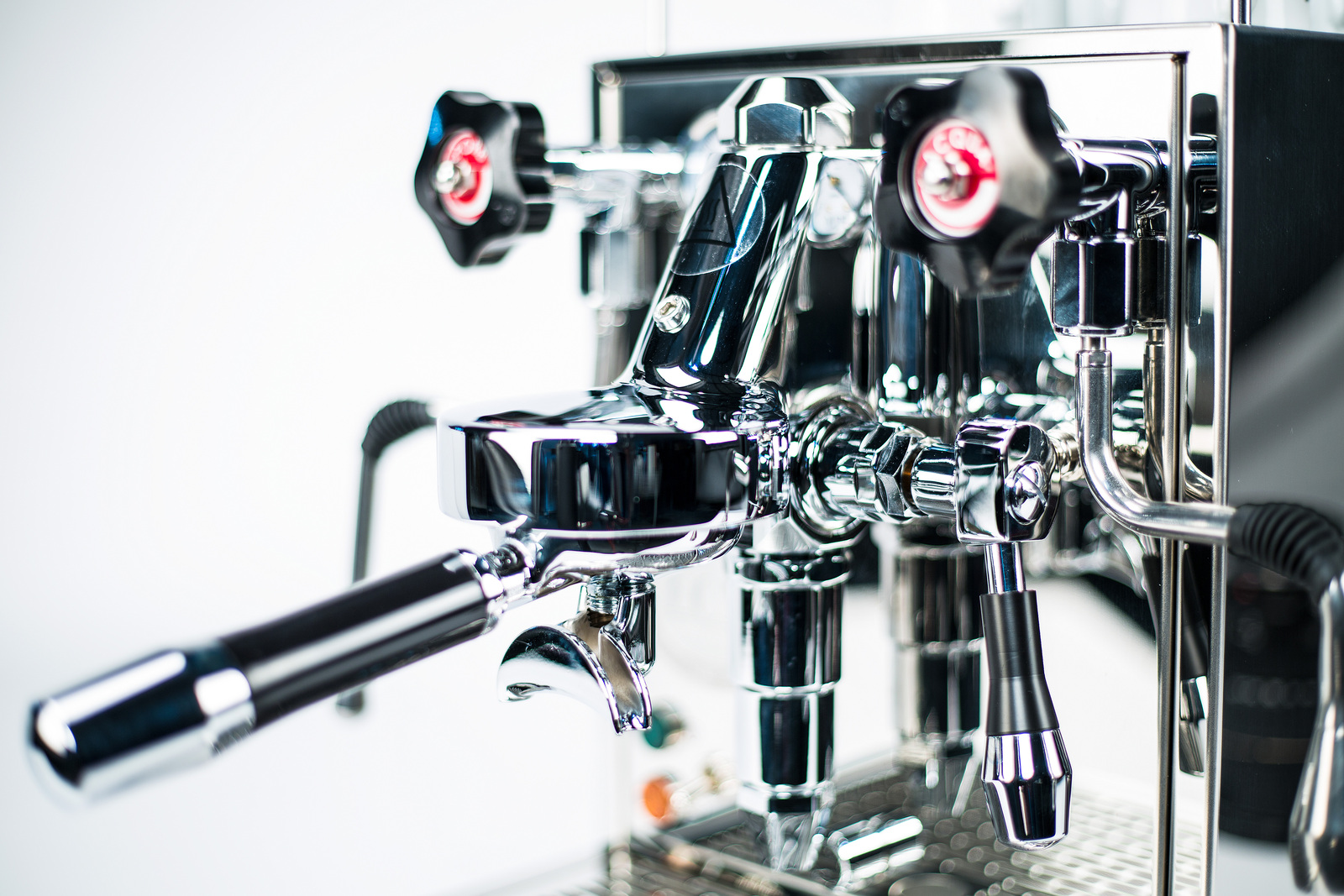

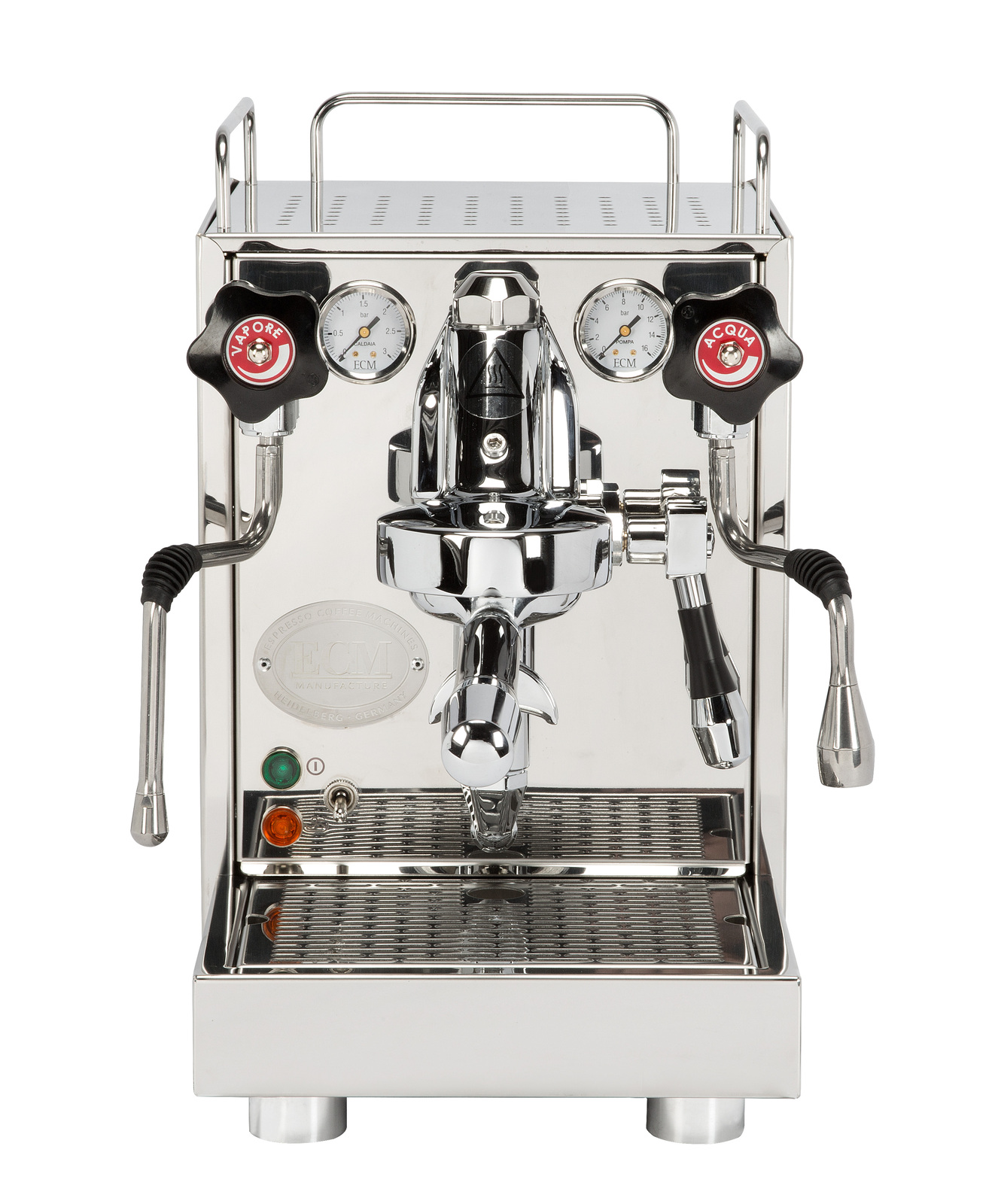

ECM's small allrounder in a compact design
- Very compact design
- 3 Way Switch with the following options:
- Three Preset Temperatures
- Preinfusion ON/OFF
- ECO Mode ON/OFF
- High-end ECM brew group with innovative stainless steel bell
- Large stainless steel boiler (2.2 l)
- Easy access to the water tank due to removable cup warming tray
- 2 ergonomic ECM portafilters with weight-balanced shape and angled grip
- Easy access to the expansion valve for an individual brew pressure adjustment
Included Accessories:
- Single Spout Portafilter
- Dual Spout Portafilter
- Single & Double Filter Baskets
- Blind Filter
- Tamper
- Group Cleaning Brush
- User Manual
Must Have:

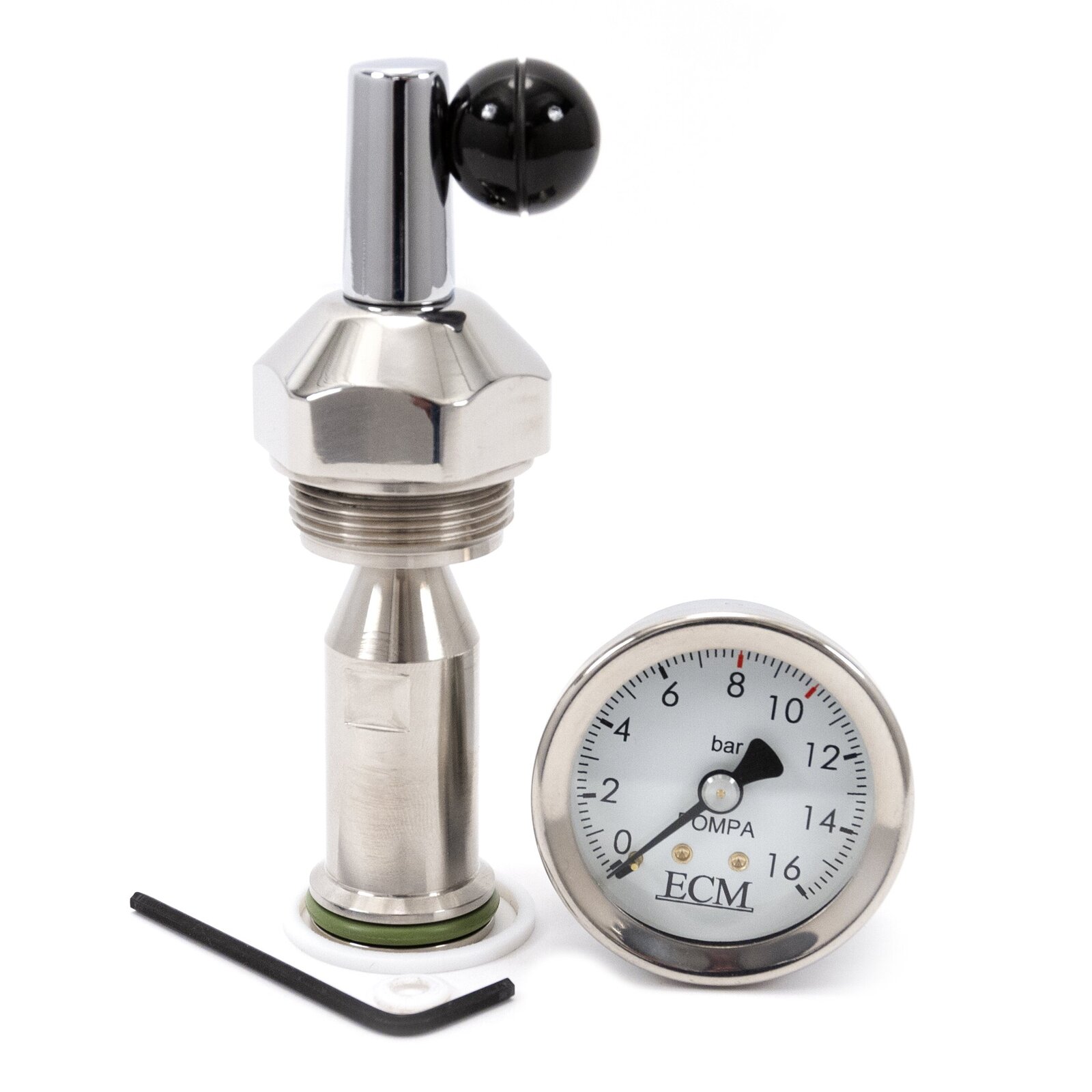

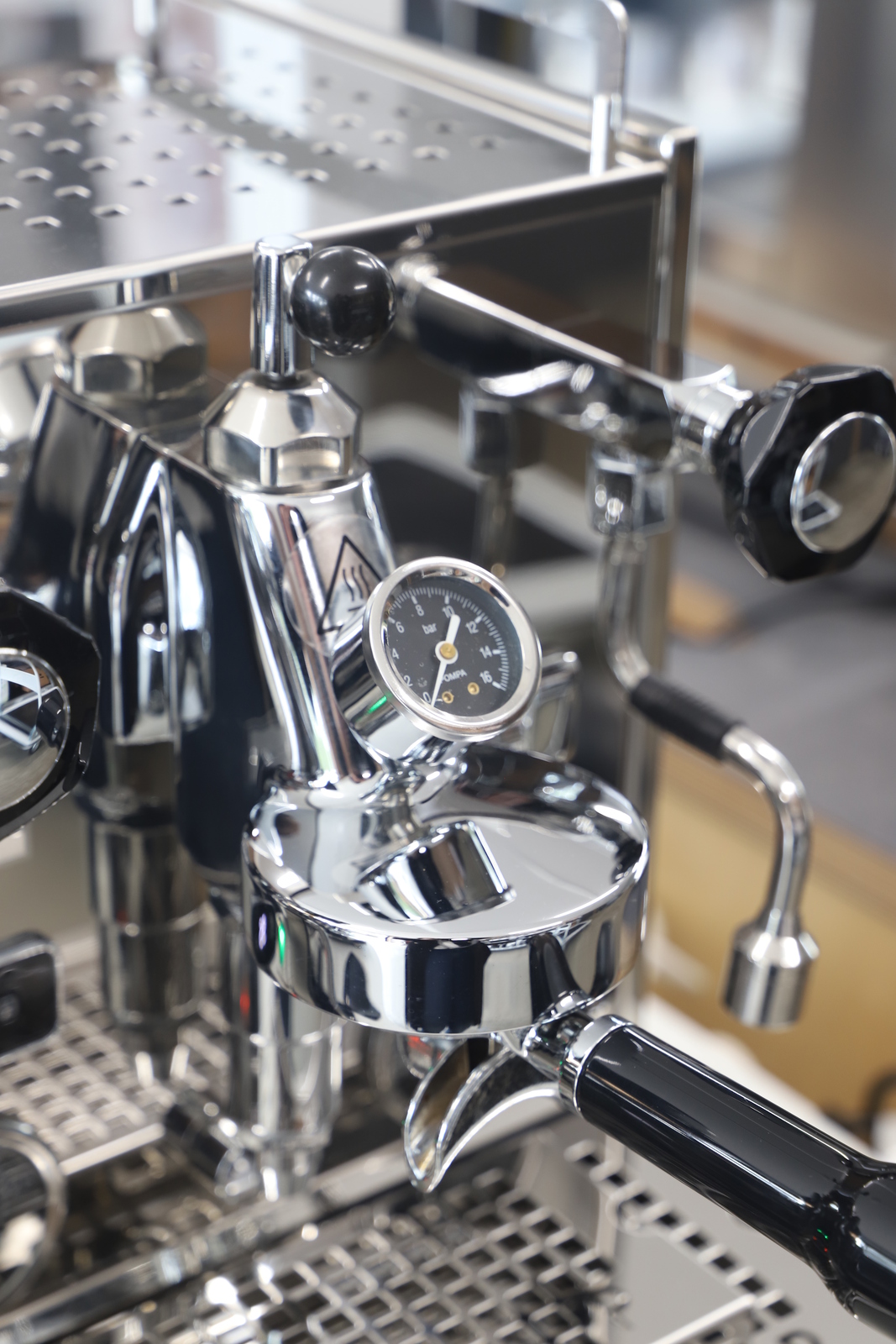

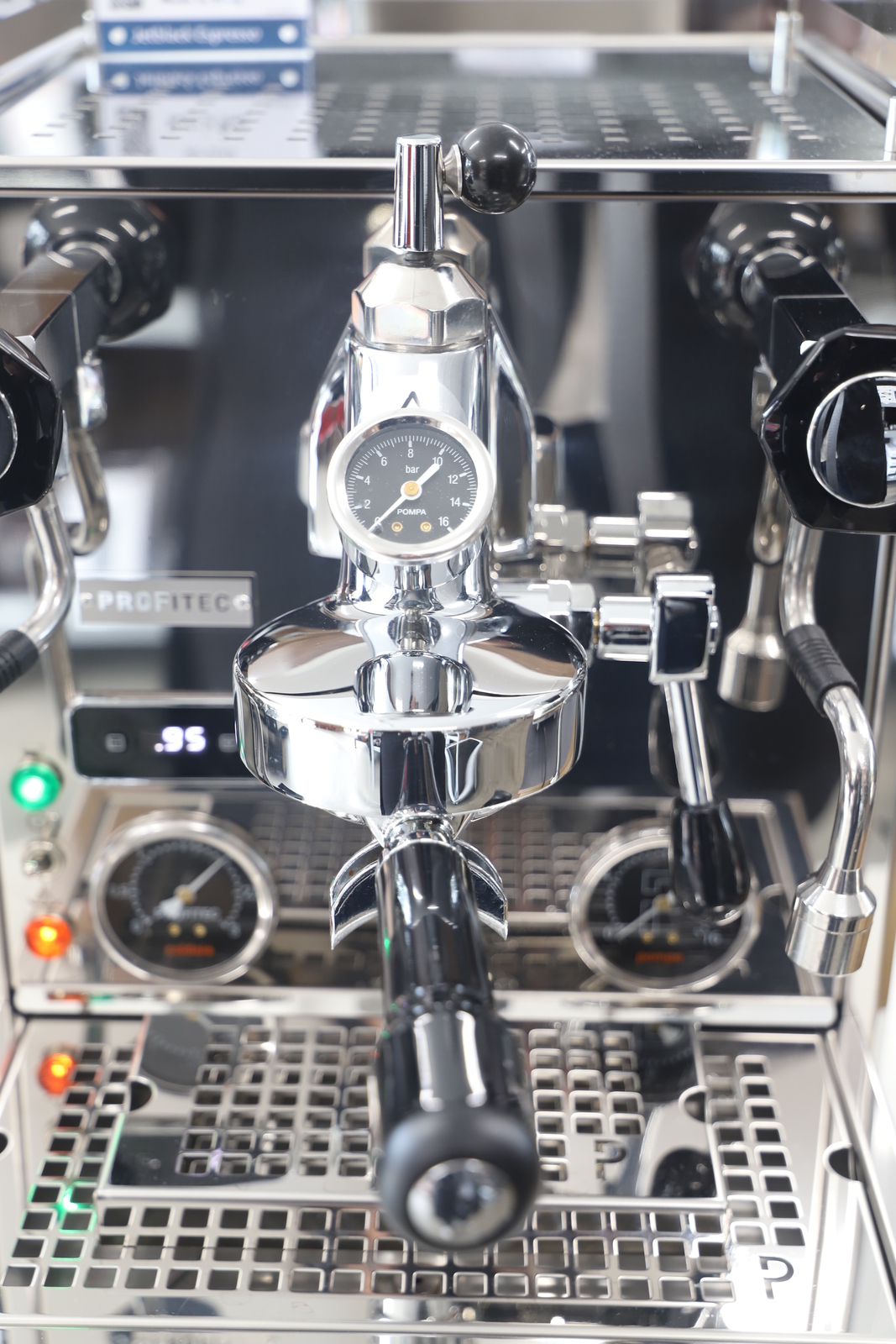

The E61 Flow Control Device allows you to adjust the flow of water in your brew group to manually profile your extractions. This custom component is a stainless steel needle valve, which allows the user to vary the amount of water flowing through the group. Variable flow control allows for lengthy pre-infusion for more even saturation and extraction of your espresso.
Similar to Profitec's existing mushroom, the flow control device is made from stainless steel to resist corrosion. The resulting changes in pressure are reflected by an included gauge which installs on the front of the group. The E61 Flow Control Device can be installed on any Profitec Espresso machine with an E61 brew group.
*Please note the photos of the flow control is of the profitec flow control, the ECM flow control regulator has a white face*
Technical data
ECM brew group | ● |
Ring brew group | |
Water tank | approx. 2.8 l |
Boiler volume | approx. 2.2 l |
Copper boiler | |
Stainless steel boiler | ● |
Brass boiler | |
Boiler pressure gauge | ● |
Pump pressure gauge |
● |
PID control | ● |
Programmable dosing | |
Vibration pump | ● |
Rotary pump | |
Water tank/direct water supply switchover |
|
Rotary valve technology | ● |
Lever valve technology | |
Removable cup warming tray | ● |
ECM portafilter(s) |
● |
Number portafilter(s) | 2 |
Weight | 20.2 kg |
Measurements (without portafilter) w x d x h |
250 x 445 x 395 mm |
Others Also Browsed
What size tamper will I need for this machine?
The nominal tamper size for this machine is 58mm, however you will get the best fit in your machine's basket by purchasing a 58.55mm PreciseFit tamper.
Country of origin
Germany
(78922)
Please refer to our Warranty Policy.
SKU | 78922 |
Nominal tamper size | 58mm |
Ideal tamper size | 58.55mm |
Barcode # | 4260013824789 |
Brand | ECM Manufacture |
Shipping Weight | 23.7000kg |
Shipping Width | 0.600m |
Shipping Height | 0.600m |
Shipping Length | 0.400m |
Heat up time | 15-30 Minutes |
Number of Groups | 1 Group |
Height | 36cm-39cm |
Pump | Vibration |
Temperature Control | Pressurestat |
Heating System | HX |
Width | Less than 25cm |
Steam Valve Type | Standard |
Brew Group | e61 |
Pressure Profiling | No |
Pressure Profiling | Analogue |
Water Supply | Internal Tank Only |
Volumetric | Semi-Automatic |
Built-in Grinder | No |
Country of origin | Germany |
Be The First To Review This Product!
Help other Jetblack Espresso users shop smarter by writing reviews for products you have purchased.
